Carbon fibrous materials (PAN) maid on a basis of a polyacrylonitrile fiber are widely applied as in manufacturing of production military, and civil appointment. High-tensile (HT) and high-modulus carbon materials on the basis of polyacrylonitrile (PAN) fibers are used as reinforcing fillers of structural composite materials (carbon fiber-reinforced plastics, CFRP). Carbon fibrous materials on a basis of a polyacrylnitrile (PAN) fiber guarantee: - High durability at a stretching
- High durability at compression
- High rigidity
- Low density
- In specific characteristics (to the relation of durability and rigidity to density) constructional carbon fiber-reinforced plastics surpass all known metal analogues, such as a steel, the titan, aluminium, an alloy in 5-8 times
Produced in a kind of: - Continuous threads in the thickness from 120 tex to 30 ktex
- The unidirectional and combined tapes

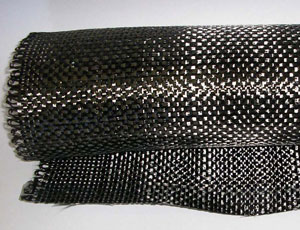

- Fabrics of a various interlacing
Application field: - aircraft construction and rocket production
- textile mechanical engineering
- tankage facilities working under pressure
- Motor industry
- Sports products
- Chemical mechanical engineering
- The building industry
- Railway transportation

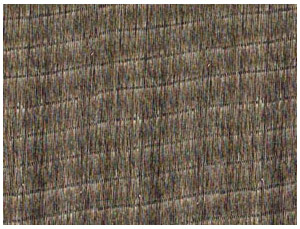

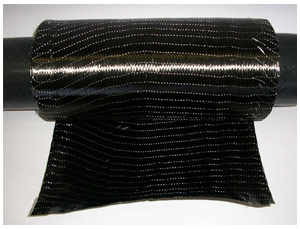

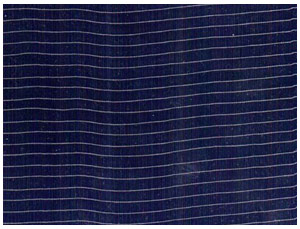

Carbon unidirectional tapes Name | Width, mm | Surface density, g/m | Properties of carbon-epoxy composite | Tensile strength, GPa | Compression strength, GPa | Elasticity modulus, GPa | Monolayer thickness, mm | LU-P-01 | 255+20 | 30+5 | 0,6-0,7 | 0,6-0,7 | 157+25 | 0,11+0,01 | LU-P-02 | 255+20 | 35+5 | 0,6-0,7 | 0,6-0,7 | 157+25 | 0,12+0,01 | ELUR-P | 245+30 | 30+5 | 0,8-0,9 | 0,8-0,9 | 145+20 | 0,11+0,01 | ELUR-008-P | 255+20 | 15+5 | 0,9-1,0 | 0,9-1,0 | 145+20 | 0,08+0,01 | LZHU-M-12 | 255+20 | 30+2 | 1,0-1,2 | 0,8-0,9 | 130+10 | 0,12+0,015 | LZHU-M-15 | 250+25 | 30+2 | 1,0-1,2 | 0,7-0,8 | 160+10 | 0,12+0,015 |

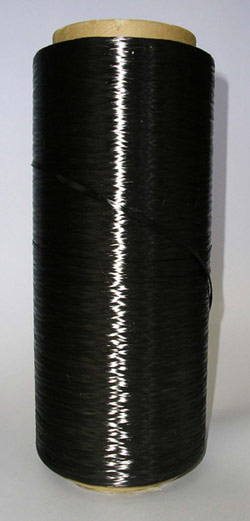

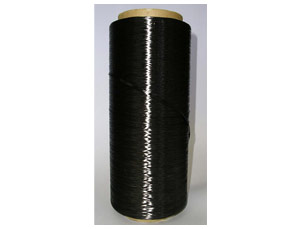

Carbon fiber threads and towsName | Linear density, tex | Density, kg/m3 | Properties of carbon-epoxy composite | Tensile strength, GPa | Compression strength, GPa | Elasticity modulus, GPa | Density,
kg/m3 | Thread UKN-M
(2,5К*, 3К, 5К, 6К, 12К) | 120-720 | 1750+40 | 1,4-1,7 | 1,1-1,2 | 120-140 | 1450 | Thread Grapan
(2,5К*, 3К, 5К, 6К, 12К) | 100-700 | 1720-1800 | < |
|
